QCORP QMT1500 Tape & Reel Machine Available
Manual / Automatic with stick feeder. Sophisticated yet simple to operate.
Menus program all functions including heat and seal shoe pressure, leader and tail tape lengths, motor and acceleration speeds, as well as counting the number of parts in a run and any empty pockets.  Heat and shoe pressure are independently programmable. A warning signal alerts to an empty pocket. Swing away optics make filling the empty pocket quick and easy. Because the machine smoothly accelerates to speed, small parts aren't jostled from tape.Tape Width: 8-56mm,Tape Pitch:Selectable; 4-56mm, Carrier Tape Type: Embossed Plastic, Cover Tape Type:Pressure Sensitive Adhesive or Heat Activated Adhesives,Selectable Component Carrier, SMD, Electrical:115 VAC 60 Hz, Air: 95 PSI 1-3 CFM, Depends on options, Component Counter, Empty Pocket DetectionAlarm: on/off selectable, Tape Drive Speed:Adjustable, Reel Size:13", Foot Switch: Standard

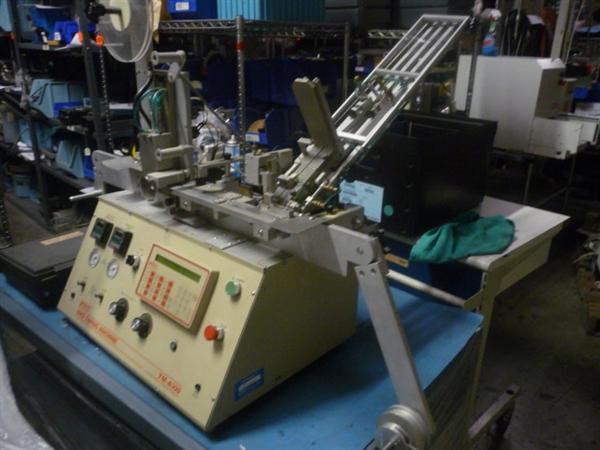

VTEK TM4000 SMD Automatic Tape & Reel Machine Available
Bulk parts that are received in tubes can be easily taped and reeled with the TM-4000.
Packages including SOICs, SOJs and PLCC's are all handled easily with V-TEK's universal feeder, making changeover between parts a quick and easy process.
Features: Universal feeder tooling available for each family of components featuring drop-in tooling designed to minimize adjustments and downtime between production runs.
Easy to use operator interface: Handles all tape widths from 12-56 mm in PSA and heat seal cover tape. Independently controlled seal pressure and temperature for each side of the cover tape for the best possible seal. Reciprocating seal head for consistent seal
Universal feeder compatible with all standard tubed components, Compact size,
Programmable Counter, Part present detection, Part jammed detection, Part rotation capability for PLCC placement, Temperature high / low alarm function on heat sealers, Power required: 115 VAC, 50-60 Hz can be easily convereted to 220V, Standard shop air to be regulated down to 80-1000 PSIG
